Paid plans only Daily’s Video Component System (VCS) lets you build custom layouts for live streaming and cloud recording. VCS goes beyond the built-in presets (default, single-participant, active-participant, portrait) to give you full control over composition, overlays, and presentation.
VCS is only available for cloud recordings and live streaming. It is not available for local or raw-tracks recording.

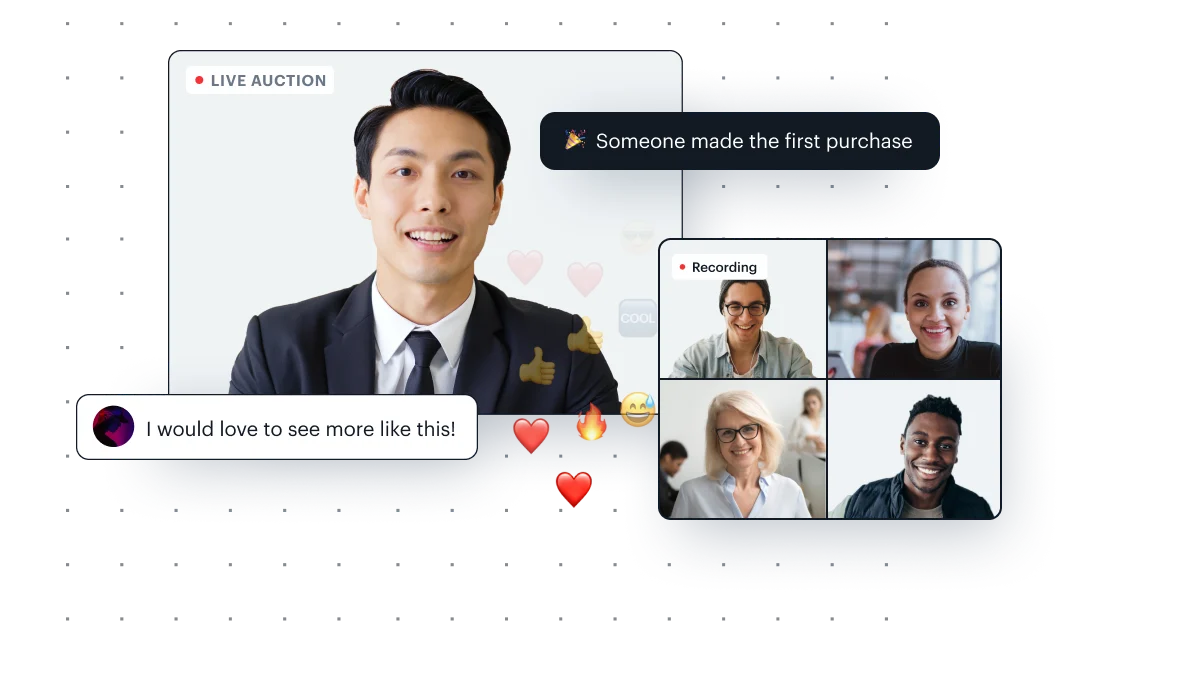

Live streaming UI

​
What VCS can do

VCS is a video-oriented layout engine based on JavaScript functions. It generates layouts called compositions, which let you turn Daily calls into engaging streamed and recorded content. Using VCS’s baseline composition, you can:
  • Apply custom video grid layouts and dominant-speaker views
  • Add animated overlay graphics
  • Display text overlays (titles, lower-thirds)
  • Show image overlays (logos, watermarks)
  • Embed live web content with the WebFrame component
  • Customize layout based on participant count or call state
Some ways developers use VCS:
  1. Building a live streaming “studio” for streamers and creators
  2. Hosting interactive multiparty virtual events broadcast live to a wider audience via YouTube or Facebook Live
  3. Creating high-quality recorded content from live events (e.g. an online fitness studio archiving recorded classes)

​
The baseline composition

Daily provides a “baseline” composition as part of daily-js and react-native-daily-js. It’s available to any Daily call using the live streaming or recording APIs. Most developers will find the baseline composition flexible enough to meet their needs — it supports a variety of grid formats, layout parameters, overlay text, overlay graphics, and more. The composition_id for the baseline is 'daily:baseline', which is also the default if you omit it. If you need customization beyond what the baseline offers, the VCS SDK is open source and lets you build fully custom compositions from scratch.

​
Using the custom preset

To use VCS, set layout.preset to 'custom' in your startLiveStreaming() or startRecording() call:
await call.startLiveStreaming({
  layout: {
    preset: 'custom',
    composition_id: 'daily:baseline', // optional, this is the default
    composition_params: {
      // VCS parameters — see below
    },
    // session_assets must be declared at start if used in any update
    session_assets: {
      'images/logo': 'https://example.com/logo.png',
    },
  },
});
Key options:
  • composition_id — the composition to use. 'daily:baseline' is the default and currently the only option.
  • composition_params — parameters that configure how the composition behaves. Pass them in startLiveStreaming() or startRecording() to set the initial layout, and in updateLiveStreaming() or updateRecording() to change the layout mid-stream.
  • session_assets — a map of string keys to public asset URLs (e.g. 'images/logo': 'https://...'). Think of this as a directory of files loaded from those URLs and named by their keys. Image asset keys must start with "images/".
session_assets must be passed in the startLiveStreaming() or startRecording() call, even if they won’t be used until a later updateLiveStreaming() or updateRecording() call.
You can update the layout at any time using updateLiveStreaming() or updateRecording():
await call.updateLiveStreaming({
  layout: {
    preset: 'custom', // required even in updates
    composition_params: {
      showTextOverlay: true,
      'text.content': 'Live now',
    },
  },
});

​
VCS Simulator

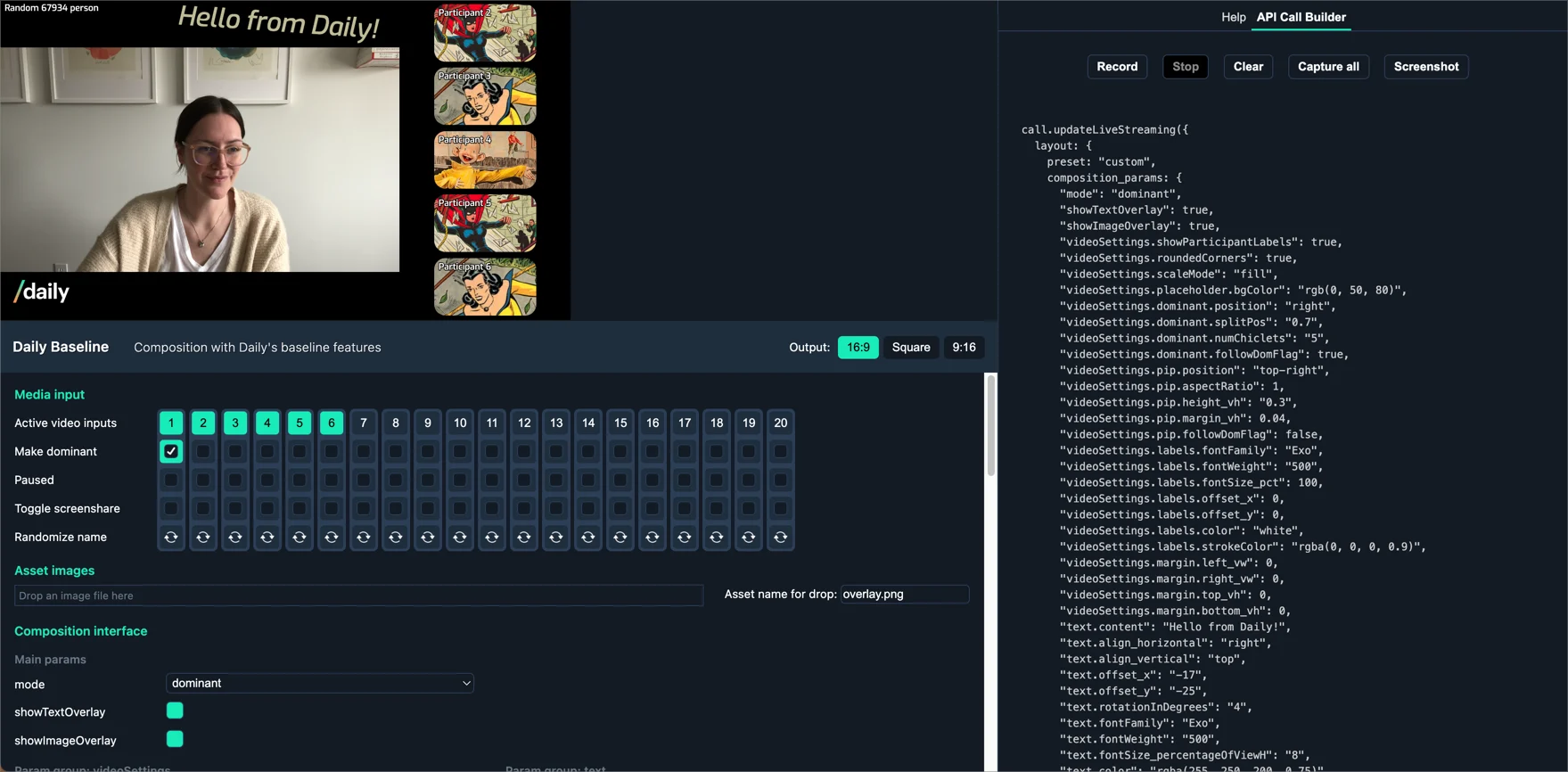

The best way to explore VCS is with the VCS Simulator — an interactive tool that lets you configure baseline composition parameters and see results in real time, without writing code. VCS Simulator example Things to try:
  • Set mode to 'grid' and click the numbered video input buttons to preview grid layout changes.
  • Set mode to 'dominant' and click “Make dominant” to see the active speaker layout.
  • Enable showTextOverlay and update the text content, alignment, and positioning.
  • Drag a PNG into the asset images box and enable showImageOverlay.

​
API Call Builder

The API Call Builder tab in the Simulator generates ready-to-use composition_params based on your interactions:
  • Record / Stop — capture parameter changes as you interact with the Simulator.
  • Capture all — output all current parameter values, including defaults.
  • Screenshot — get a preview image of your current composition.
  • Clear — reset your recorded options.

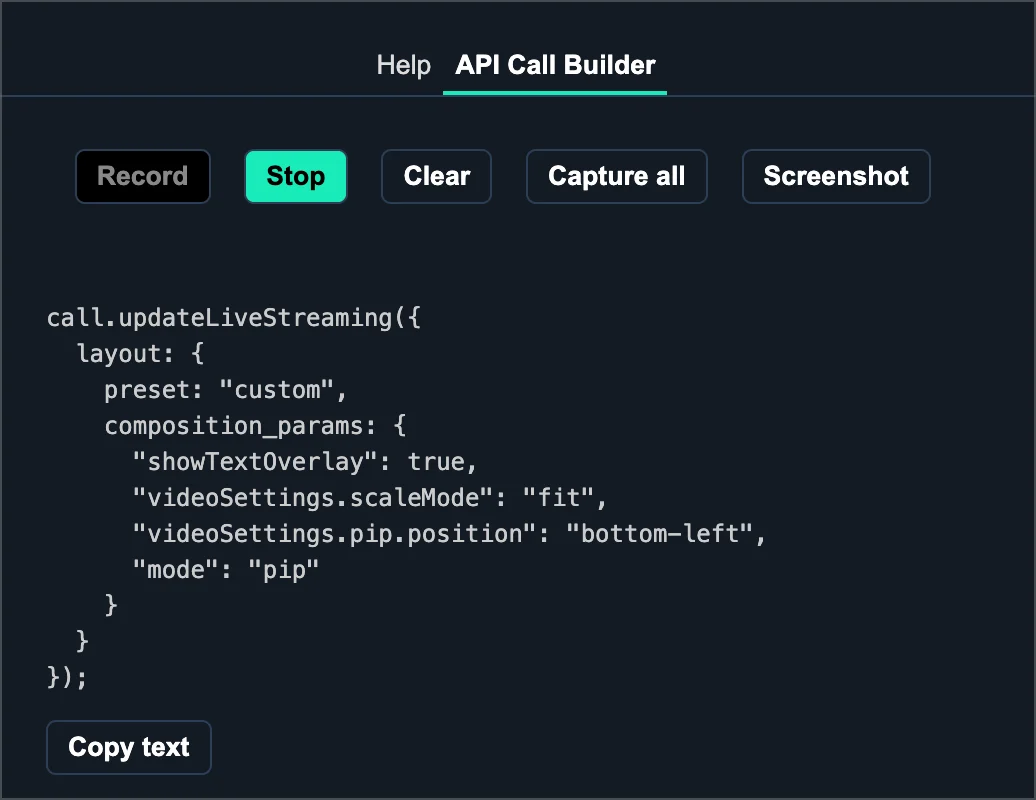

API call builder tab in the VCS simulator The generated parameters work in startLiveStreaming(), updateLiveStreaming(), startRecording(), and updateRecording().

​
Example configurations

​
Text overlay

await call.updateLiveStreaming({
  layout: {
    preset: 'custom',
    composition_params: {
      showTextOverlay: true,
      'text.content': 'Hello streaming',
      'text.align_vertical': 'bottom',
      'text.align_horizontal': 'center',
      'text.offset_y': 20,
      'text.color': 'white',
      'text.strokeColor': 'rgba(0, 0, 0, 0.8)',
    },
  },
});

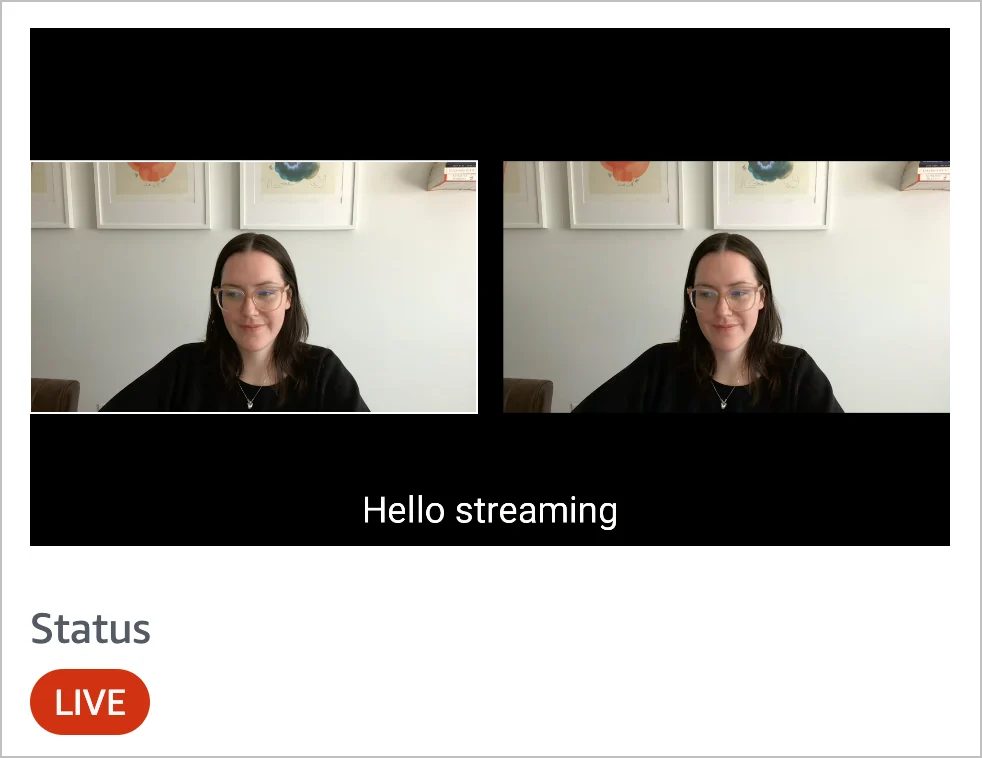

Assuming you are using the default values for other parameters, this will look like: Live streaming with AWS IVS and a text overlay

​
Dominant speaker layout

await call.updateLiveStreaming({
  layout: {
    preset: 'custom',
    composition_params: {
      mode: 'dominant',
      'videoSettings.dominant.position': 'left',
    },
  },
});

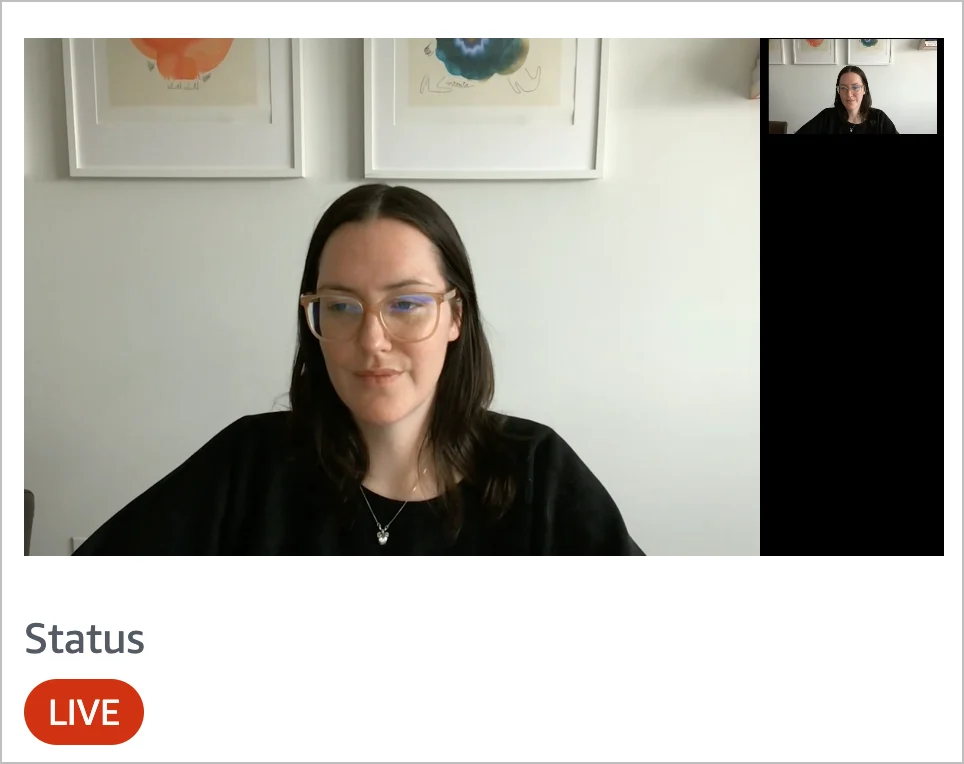

Assuming you are using the default values for other parameters, this will look like: Live streaming with AWS IVS and a text overlay with a larger video displayed on the left side In dominant mode, the active speaker’s video renders large on the specified side, with other participants in smaller tiles on the other side. This layout can be further customized with additional videoSettings.dominant.* parameters.
The “dominant” video corresponds to the current active speaker.

​
Testing with the Daily Prebuilt demo app

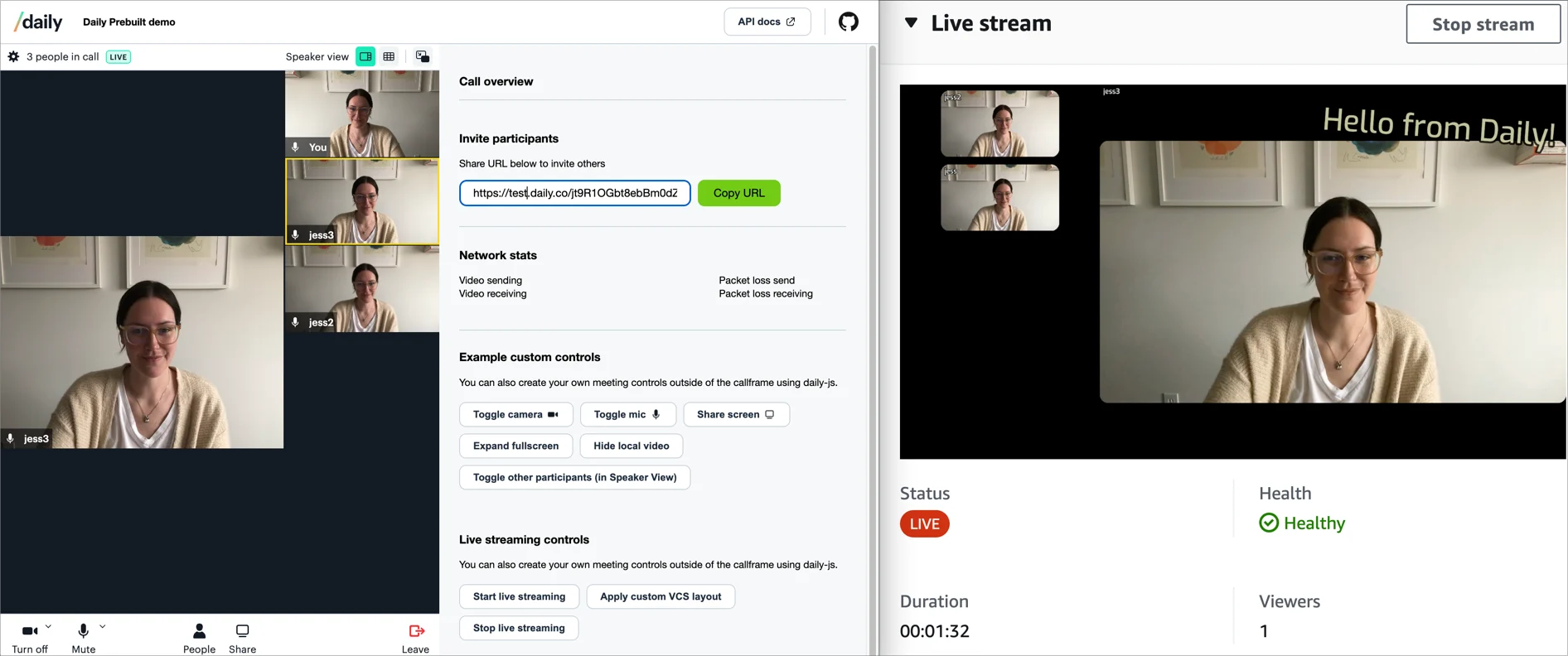

The vcs-live-streaming branch of the Daily Prebuilt demo app includes UI for starting a live stream, applying VCS properties via updateLiveStreaming(), and stopping the stream. You can use any transcoder — YouTube Live, Mux, or AWS IVS all work. Comparison of Daily Prebuilt UI with the VCS custom properties applied

​
VCS SDK

The baseline composition is open source. If you need customization beyond what composition_params provides, the VCS SDK lets you build fully custom compositions from scratch.
